How to Assemble the Hyper Bicycles 700c E-Ride 36V Commuter E-Bike

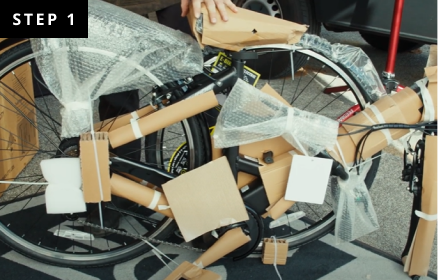

Begin by removing all packaging materials to access the bike components. Organize the parts and tools on a clean surface to ensure you have everything you need for a smooth assembly.

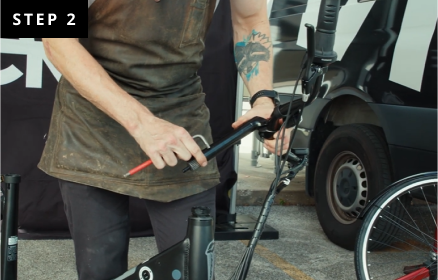

Install the handlebars by pressing the wedge nut into the steer tube. Use a 6mm Allen key to tighten the stem bolts securely. This step ensures that the handlebars are stable and won’t shift during rides, which is crucial for rider safety and control.

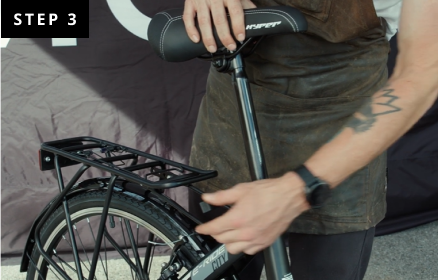

Insert the seat post into the seat tube, ensuring that it goes past the minimum insertion line. Tighten the seat post clamp securely to prevent any movement while riding. This step ensures your seat remains stable for comfort and control.

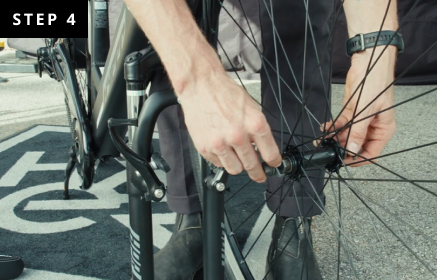

Install the front wheel by aligning the wheel properly with the fork. Ensure the drive direction of the wheel is correct, and secure the fork tabs to keep the wheel in place. This is essential for safety and effective braking during rides.

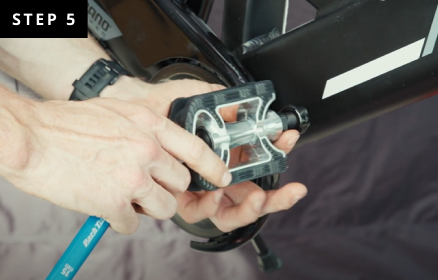

Install the pedals by following the threading directions:

• The right pedal has normal threading and should be screwed in clockwise.
• The left pedal has reverse threading and should be screwed in counter clockwise.


Tighten the pedals securely to ensure they stay in place during your ride and function properly.

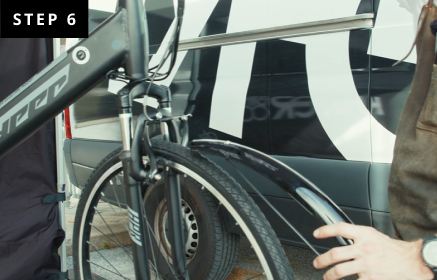

Thread the fender through the fork and secure it using the provided nuts. Proper alignment and tightness are key to preventing any movement and ensuring that the fender stays securely in place, enhancing riding safety.

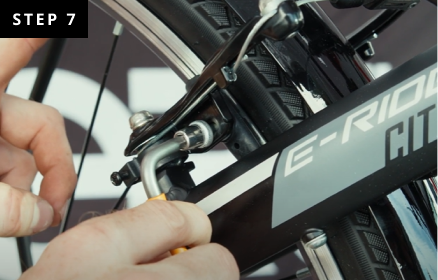

Proper brake installation is essential for safe riding:

• Align the brake arms to ensure they are positioned correctly for effective stopping power.
• Use a 5mm Allen key to adjust the brake pads so that they are evenly aligned with the rim's brake track.
 This step ensures that both brake arms function correctly for smooth and reliable braking.

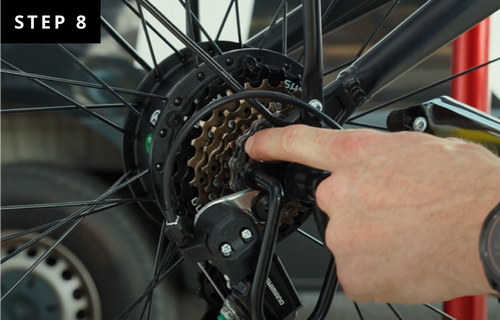

To ensure smooth gear shifting, adjust the high and low limit screws on the derailleur. This will optimize gear transitions and provide faster shifting, improving the overall riding experience.

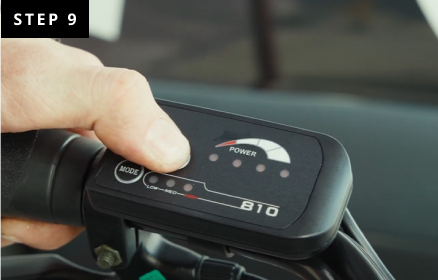

Once all components are installed, turn on the bike by activating the power switch. Ensure that everything is functioning correctly before riding, including the controller and display.

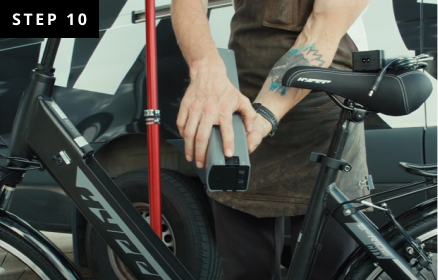

Charge the bike’s battery before your first ride. Ensure the battery is fully charged to maximize range and performance. Always use the recommended charging methods for optimal battery life.

Before your first ride, conduct a final check of all components:

• Handlebars: Ensure the handlebars are properly aligned and tightly secured.
• Brakes: Test the brakes for smooth engagement and adjust if necessary.
• Wheels and Pedals: Double-check that both wheels and pedals are securely fastened.

Once all steps are completed and you’ve conducted a safety check, your Hyper E-Ride City Bike is ready to go! Make sure everything is in place, and enjoy your ride with confidence.
