How to Assemble the Hyper Bicycles 29" Electric Mountain Bike

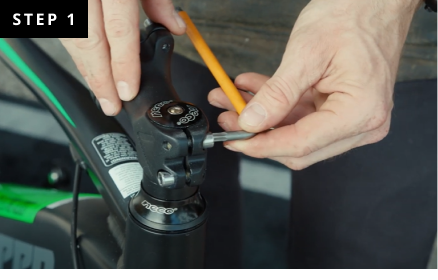

Use a 5mm Allen key to loosen the stem pinch bolts. This is crucial for ensuring the proper alignment of the fork brace arch and the rear brake. Loosening these bolts allows you to adjust the stem and handlebar for the most comfortable riding position.

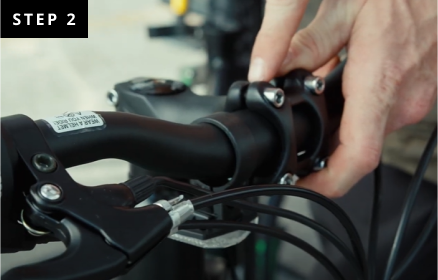

Align the handlebars so that the controls face you as the rider. This will position the shifter and ebike meter correctly for easy access. Once aligned, secure the face plate and tighten the bolts according to the specified torque in the manual. Proper tightening is essential to maintain stability and safety while riding.

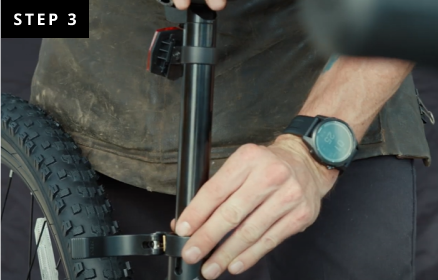

Insert the seat post into the seat tube, ensuring it goes past the minimum insertion line. Tighten the seat post clamp to prevent any movement. This step ensures that your seat remains securely in place, enhancing your comfort and control while riding.

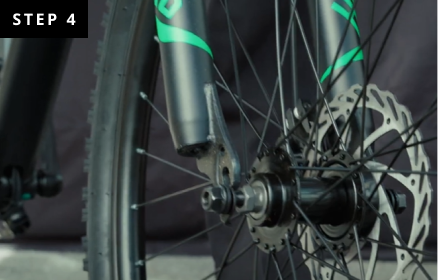

Loosen the axle nuts and position the front wheel onto the fork. Align the rotor with the caliper, making sure everything is correctly positioned for effective braking performance. Once aligned, tighten the axle nuts securely to hold the wheel in place.

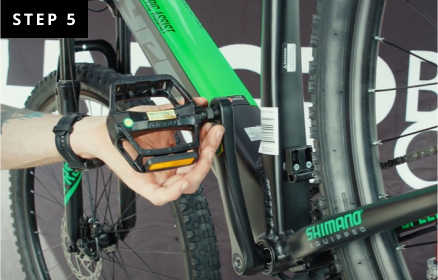

When installing the pedals, remember:

• The right pedal uses standard threading, so screw it in clockwise.

• The left pedal uses reverse threading, so screw it in counter clockwise.

Tighten each pedal securely to ensure proper function and prevent them from coming loose during rides.

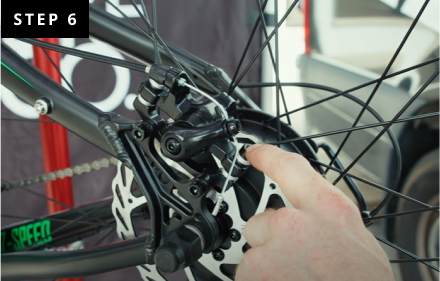

Using a 5mm Allen key, adjust the brake calipers to ensure they are properly aligned with the rims. Proper brake adjustment is critical for effective stopping power, so make sure the brake pads are in full contact with the rim when the brakes are engaged.

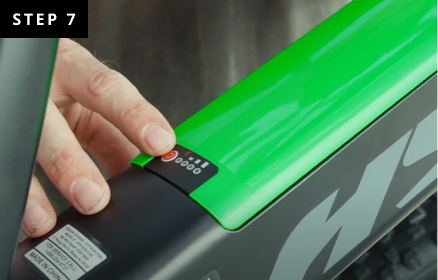

Your Hyper E-Ride Mountain Bike has flexible charging options. You can either charge the battery via the external port on the bike or remove the battery for charging separately. Make sure to fully charge the battery before your first ride for maximum range.

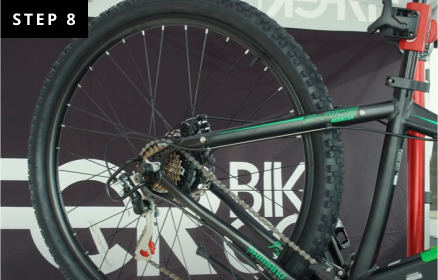

Before you hit the road, perform a quick safety check:

• Ensure the hub axle nuts are securely tightened.
• Check the tire pressure to ensure it matches the recommended levels on the sidewall of the tire.
  These simple checks can prevent accidents and ensure a smooth, safe ride.

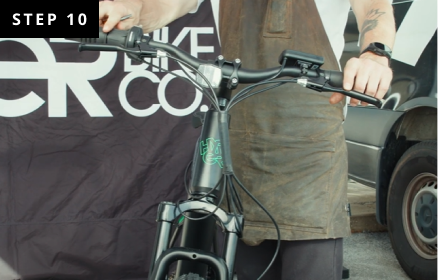

Perform a final check of your bike to ensure that all components are securely fastened:

• Handlebars and Stem: Make sure everything is tight and properly aligned.
• Brakes: Test the brakes to ensure they engage smoothly.
• Pedals: Confirm that the pedals are securely installed

Once all steps are completed, your Hyper E-Ride Mountain Bike is ready to go! Ensure everything is properly tightened, and you're set for a safe, enjoyable ride.
