How to Assemble the Hyper Bicycles 26" Electric Mountain Bike:

Start by carefully opening the packaging. Take your time to ensure you don’t damage any parts inside. The box contains the bike itself and two smaller boxes holding additional components.

Inside the main package, you’ll find two important boxes:

• Battery Charger
• Parts Box

These boxes contain essential components for your bike's assembly. Set them aside for now, but keep them within reach.

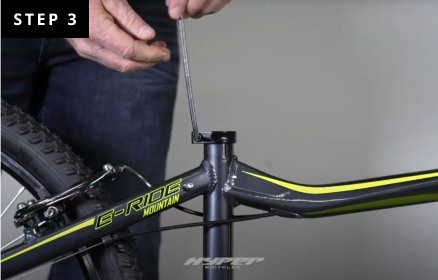

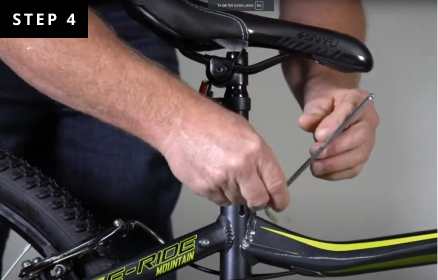

Locate the seat post clamp on the bike frame. Use your 5MM Allen key to loosen the clamp just enough to insert the seat post.

Insert the seat post into the seat tube on the bike frame. Make sure the seat post goes beyond the minimum insertion line marked on it. This ensures a secure and safe fit.

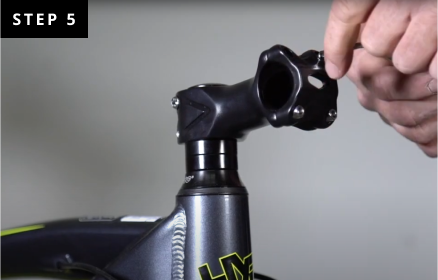

Next, remove the faceplate from the bike’s stem. This step is crucial as it prepares the bike for handlebar installation. Use the 4MM Allen key to remove the bolts holding the face plate in place.

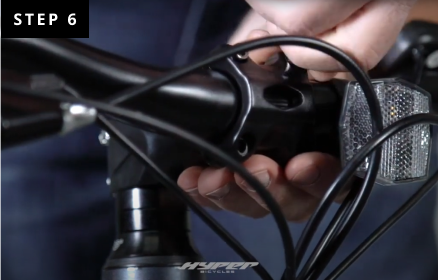

With the faceplate removed, position the handlebar onto the stem. Ensure the handlebar is centered correctly. Once in place, reattach the face plate using the bolts you removed earlier.

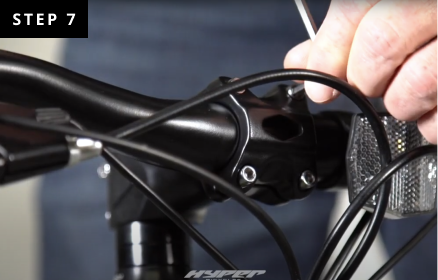

Using the 4MM Allen key, snugly and evenly tighten each stem bolt. It's essential to tighten them evenly to avoid any misalignment of the handlebars.

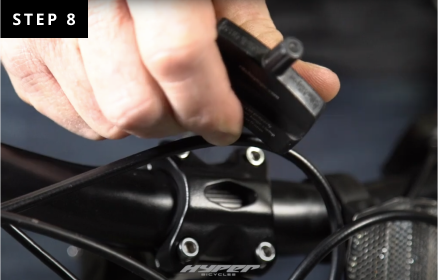

For the final tightening, use your torque wrench. Set it to 5 NM and make sure you do not over-tighten the bolts. Over-tightening can damage the components and affect your bike's performance.

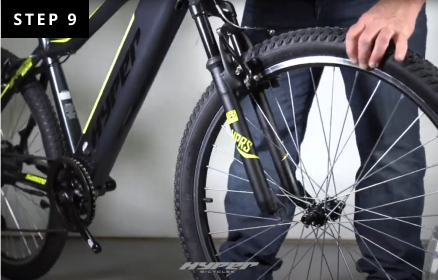

Now, open the brakes to allow for the installation of the front wheel. Insert the front wheel into the fork, making sure the wheel is oriented correctly according to the direction marked on the tire.

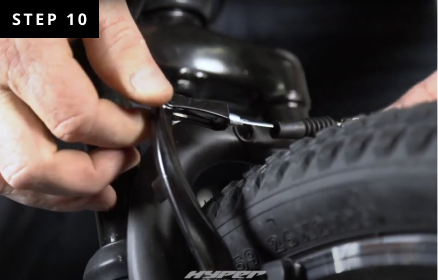

Once the front wheel is securely in place, reattach the brakes. Double-check that the brakes are functioning correctly before moving on to the next step.

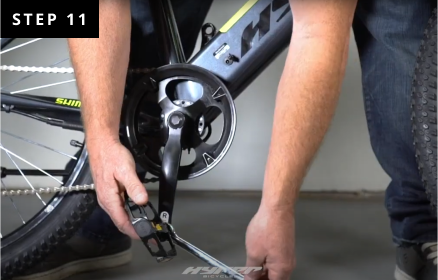

From the parts box, remove the pedals. Attach the right (drive side) pedal by rotating it clockwise, following the markings on the crank and pedal. Repeat the process for the left (non-drive side) pedal.

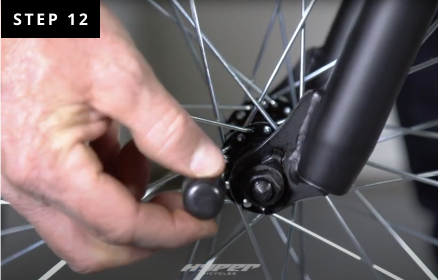

The axle protectors, found in the parts box, are designed to protect your bike’s axle during rides. Attach these protectors to the appropriate areas as indicated in the bike’s manual.

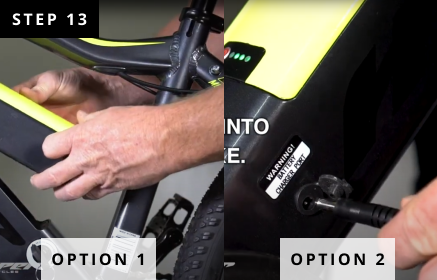

Your Hyper Electric Mountain Bike offers two charging options:

Option 1: Charge the battery off the bike

• Remove the battery from the bike.
• Insert the charging cable into the battery charging port.

Option 2: Charge the battery on the bike.

• Insert the charging cable into the charging port on the bike.
• Turn the battery on while charging.

General Instructions for Charging:

• Always insert the charging cable into the port correctly, whether you’re charging on or off the bike.
• Ensure the battery is powered on during the charging process.

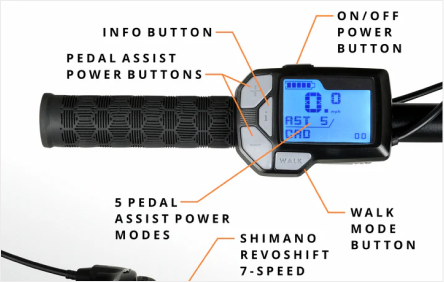

• 6km Walk Assist Mode: This feature helps you walk your bike with ease, especially when navigating steep inclines or rugged terrain.
• 3-Power Level Pedal Assist Modes: Depending on your ride’s demands, you can choose from three different power levels to enhance your pedaling experience.

Before taking your Hyper Bicycles 26" Electric Mountain Bike out for its first spin, ensure that all components are securely fastened. Check the tire pressure, test the brakes, and make sure the battery is fully charged. Adjust the seat height and handlebar position to suit your comfort.

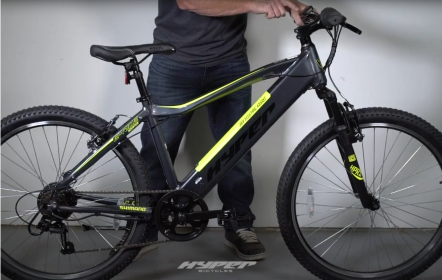

Congratulations! Your Hyper Bicycles 26" Electric Mountain Bike is now assembled and ready for adventure. With pedal assist, you’ll be able to tackle trails and city streets with ease. Remember to wear your helmet and enjoy the ride!
